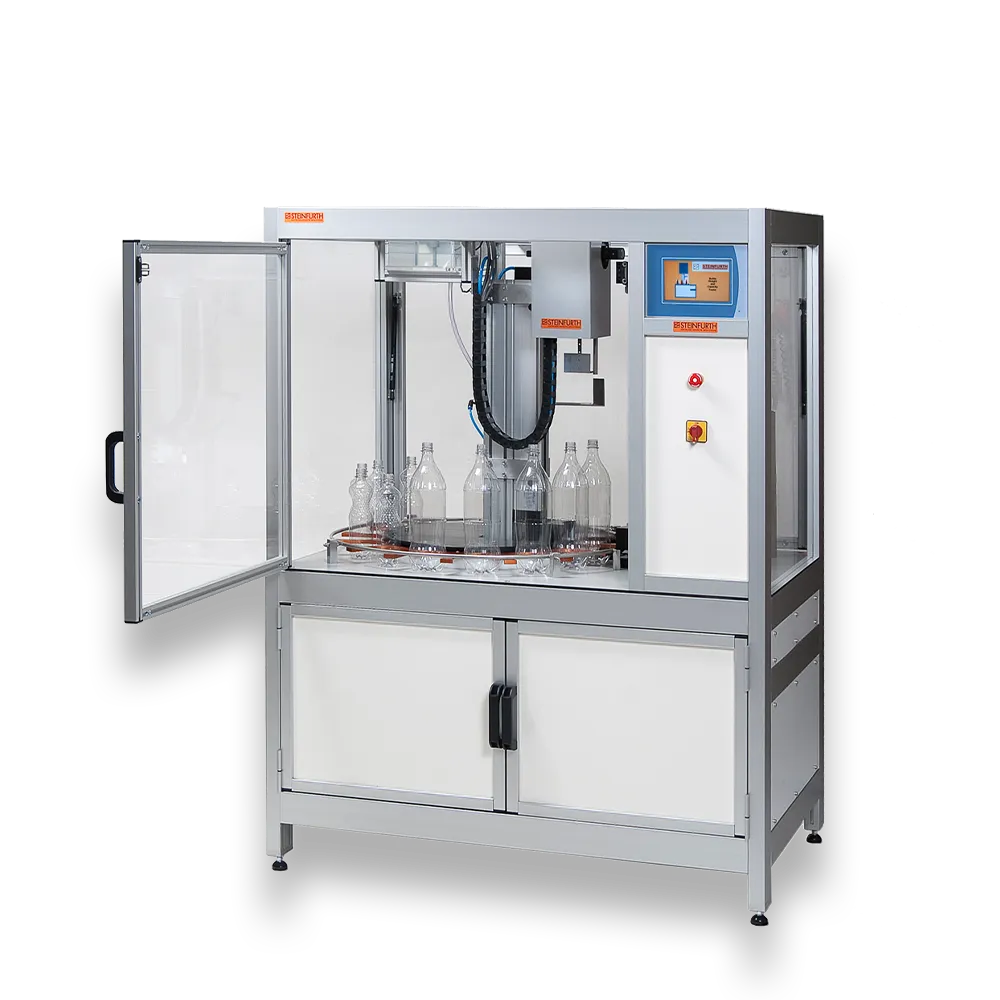

The Bottle Weight and Capacity Tester (BWCT) measures the volumes of bottles and cans quickly and reliably. It can handle bottles and cans of all usual shapes and dimensions. The BWCT automatically positions the specimens, measures the empty weight, collects the total volume and measures the weight at fill point before emptying the specimen bottle or can. The water is reused, and the water Temperature is monitored in order to take density into account.
• Metrics: weight, volume over weight
• Property: Bottle volume and fill level
• Features: Measurement
• System: Yes
• Level of automation: Fully-automatic
• Measurement category: Dimensional Test Method – Bottle Dimensions, Dimensional Test Method – Finish Dimensions
• Measuring range: 20…4300 g (gross)
• Container types: Glass, PET, cans
• Container heights: 100…380 mm
• Container diameters: 45…125 mm
• Fill point (below brim): 0…90 mm
• Accuracy: +/- 0.04 g
• Resolution: 0.01g
• Vertical positioning acc.: +/- 25 µm
• Max. no. of samples: 15
