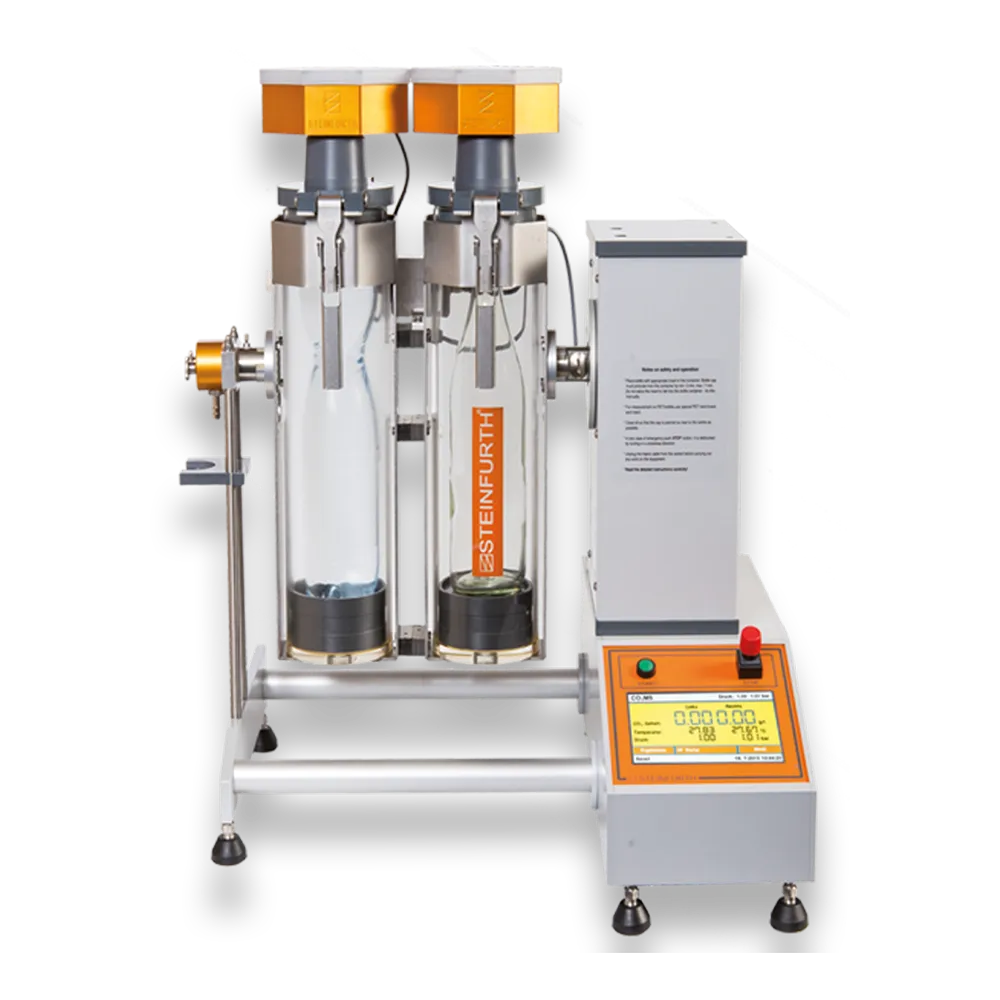

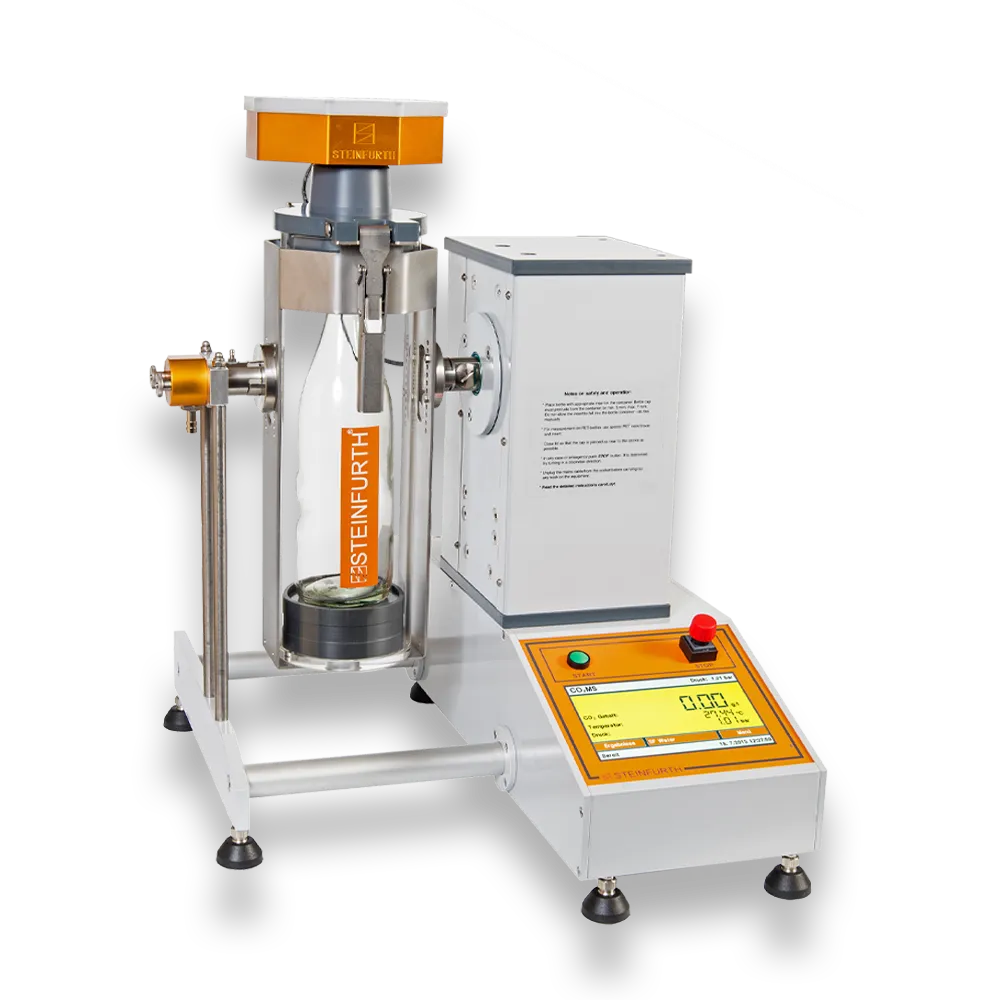

Steinfurth Automatic CDA MK-6 CO2 Tester

Able to operate independently with automatic sample preparation, the CDA MK C02 tester makes measuring CO2 levels easy.

This automatic CO2 tester measures pressure and temperature simultaneously, calculates the CO2 content and transfers the measurement results via data-interface to the base-unit – giving you the results you need to quickly and accurately establish and monitor CO2 levels.

CO2 measurement is essential for the beverage industry because the levels affect the taste and shelf life of beverages. A continuous monitoring of the carbon dioxide content is necessary to ensure a consistent quality for bottled or canned beverages.

The Steinfurth Automatic C02 Tester CDA MK-6 is perfectly suited to providing the results needed and it offers easy adoption to all packaging and closure types, making it a flexible option for testing multiple can and bottle designs.

Dynamic sample preparation, low-maintenance construction and easy calibration ensure a high-precision measurement, making this an ideal CO2 tester. Each measurement procedure is ex-factory customized to the specific measuring medium and runs fully automated – promising reliable results right out the box!

The flexible programmable control unit writes every parameter as a measurement protocol in the internal memory, where detailed CO2-content – including pressure, temperature, date, time, current number, and serial number of the machine and specific sample code – enable a perfect conformability.

The base unit has an integrated touchpad that shows a direct, color-based classification of the measured results, so beverage quality and the CO2 levels are perfectly visualized.

Different settings are very easy to access and change via barcode scanner, user interface or the customizable data interface of the CDA MK-6. So changing samples or operators remains efficient, saving you time and increasing the productivity of your beverage testing process.

The Steinfurth CDA works based on the physical law of Henry & Dalton. Place the packaged beverage in the sample container and close the measuring head to automatically pierce the sample.

Press the Start button and measurement with integrated dynamic sample preparation will be initiated. The harmonic overhead tumbling of the sample delivers optimal physical equilibrium of the sample and assures perfect repeatability and accuracy of the measuring results.

Once the state of equilibrium is reached, the CO2 content is automatically calculated and stored where it will then be available as digital fingerprint of the test with all recorded parameters, this can then be transferred to a PC or directly into the network.
